Hot Rolled Q235 Galvanized Steel Mounting Stand Racking, Brackets For Solar Panel Mount System
As the main structure of the pv mounting system,the galvnized steel are made by good quality Q235B and Q345B.The performance of load-bearing,wind resistance and seismic resistance has been given sufficient consideration,which will ensure the safety of the system.
Galvanized steel bracket, generally Q235 steel is used as the main material. The galvanized steel bracket has stable performance, mature manufacturing process and high bearing capacity. Therefore, it is mainly used in power plants with strength requirements, such as large ground power stations. The bracket made of this material is currently widely used in photovoltaic support.
Datas:
| Name | Size(mm) | Thickness(mm) | Material | Surface treatment | Photo 1 | Photo 2 |

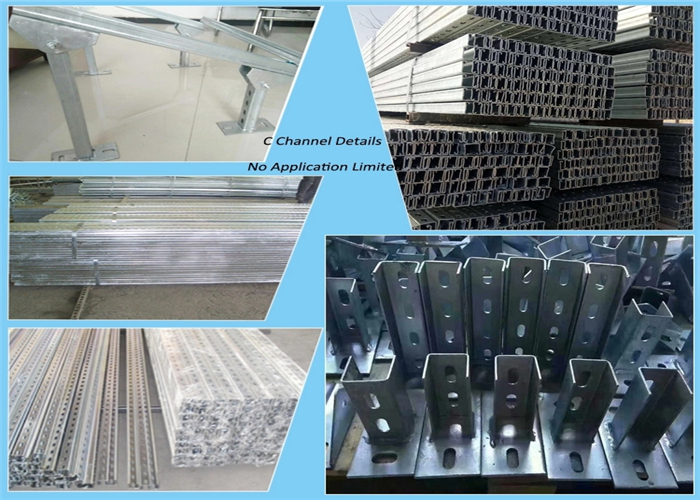

| C type steel | C40*40*10 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
|
|
| C60*40*15 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| C80*40*15 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| C100*50*15 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| C120*50*20 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| U type steel | U41*21 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
|
|
| U41*41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| U52*41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| U62*41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| U72*41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
| Round tube | φ60 | 2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
|
|
| φ60 | 3.0 | Q235B/Q345B | Hot-Dip Galvanizing |
| φ76 | 4.0 | Q235B/Q345B | Hot-Dip Galvanizing |
| φ89 | 4.0 | Q235B/Q345B | Hot-Dip Galvanizing |
| Square tube | 40*40 | 2.0-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |
|
|
| Rectangular tube | 60*40 | 2.0-3.0 | Q235B | Hot-Dip Galvanizing |
|
|
| 80*40 | 2.0-3.0 | Q235B | Hot-Dip Galvanizing |
Products can be customized according to customer requirement.
Features:
1. Manufactured from high tensile galvanized steel.
2. Pre-punched holes based on detail design.
3. All components are highly pre-assembled, ensure the mounting system fast installation and saving labor cost.
4. C purlin may be used in single spans and continuous spans in multi-bay buildings.
5. Custom-made service of cold formed steel according to customer's requirement.
6. Complete assessories package available.
7. The engineer team ensure us the special design is also available. strong and reliability solution.
8. Engineered for open filed projects. Both aluminium series and galvanized series are available.
Packaging & Shipping:
► Payment Terms: L/C,D/A,D/P,T/T
► Port: Tianjin, Shanghai, Qingdao
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface
