Hot Dipping Metal Ground Screw Piles Steel Anchor Helical Length 1000~3500mm Anticorrosive For Solar Mounting Systems
Screw Foundation Systems is the intelligent alternative fixing method for all types of installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Specs:
| Name | Size(mm) | Thickness(mm) | Material | Surface treatment | Photo |
| Piles with flange | φ 76/89,1000-2000mm(Length) | 4 | Q235B | Hot-Dip Galvanizing |
|
| Piles without flange | φ 76/89,1000-2000mm(Length) | 4 | Q235B | Hot-Dip Galvanizing |
|
| Steel pipe piles | φ 76/89,1000-2000mm(Length) | 4 | Q236B | Hot-Dip Galvanizing |
|
Products can be customized according to customer requirement.
Features:
☀ Pipe Material: Steel Q235B
☀ Install site: All types of Soil
☀ Pipe Length: 500~2500 mm
☀ Pipe Diameters: 76 mm~200 mm
☀ Pipe Thickness: 3~3.5mm
☀ Anticorrosive:High class hot dip galvanized
☀ Warranty: 10 years warranty
☀ Duration:More than 20 years
Packaging and delivery:
► Port: Tianjin, Shanghai, Qingdao
► Payment Terms: L/C,D/A,D/P,T/T
► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
Certificates:
|
|

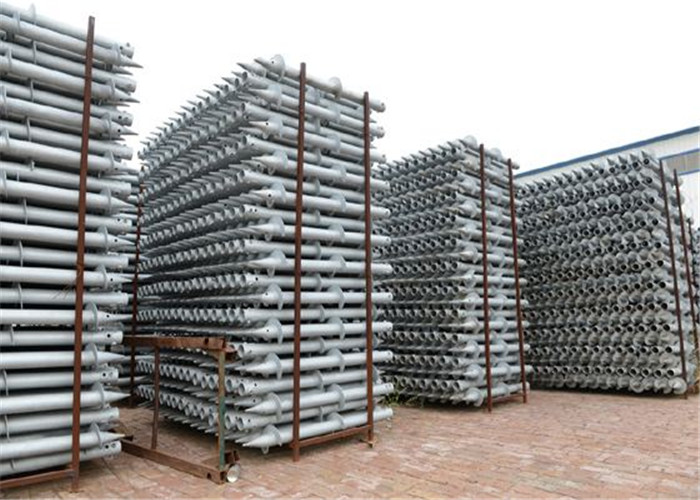

Hot Dipping Metal Ground Screw Piles Steel Anchor Helical Length 1000~3500mm Anticorrosive For Solar Mounting Systems Images
|
