Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System

Name: Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System
Brand: TIANFON
Price: 1 USD

China Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System wholesale

Brand Name : TIANFON

Model Number : TF-G005

Certification : SGS,ISO 9001,ISO 14001,OHSAS 18000

Place of Origin : CHINA

MOQ : 1000 Watt/Watts

Price : US $0.05-0.18 / Watts

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Watt/Watts per Week

Delivery Time : within 15-25 work days after receipt deposit

Packaging Details : 1.Carton box,wooden pallet 2.Customized packing

Application : Private, Government and Enterprise's Parking Lot

Surface Treatment : Hot Dip Galvanizing and Anodized

Thickness : 0.5mm-15mm

Type : on grid system, off grid system

Duration : 25 years

Warranty : 10 years

Installation Angle : 5~45°

Wind Load : ≤60m/s

Snow Load : ≤1.4KN/m²

Material : Q235B, Q345B, component Aluminum Alloy & Stainless Steel etc., customized upon requirement.

Port : Tianjin, Shanghai, Qingdao

Payment terms : L/C,D/A,D/P,T/T

Contact Now

PV Mount Rack Chinese Solar panels Triangle Bracket Ground Pv Aluminum Solar Structure Bracket Mounting System

The ground photovoltaic support system is widely used in the construction of large-scale solar power station support, the material mainly made of steel and aluminum. Based on the global construction performance, the scope of the use of shaped steel ground pv solar system is relatively large, while the aluminum ground PV solar system is relatively small.

Steel PV bracket system has high cost performance,high strength, standard outdoor use,and high global recognition. Alminum PV bracket system has the advantages of anti-corrosion, no rust, beautiful, easy to install, its main anti-corrosion and rust ability outstanding, suitable for the installation of small ground and medium-sized roof photovoltaic power generation system, light and convenient construction.

1. Technical Parameters :

Item	Parameter
Application	Mountain, Plain, Highland, Desert
Installation Angle	Fixed degree,5-45°
Wind Load	≤60m/s
Snow Load	≤1.4KN/m²
Applicable Module	Framed or Frameless
Material	Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Module Orientation	portrait or landscape
Module type	Any type of PV moduels
Surface Treatment	Hot Dip Galvanizing & Anodized
Warranty	10 years warranty and 25 years duration

2. Detailed Introduction:

Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System

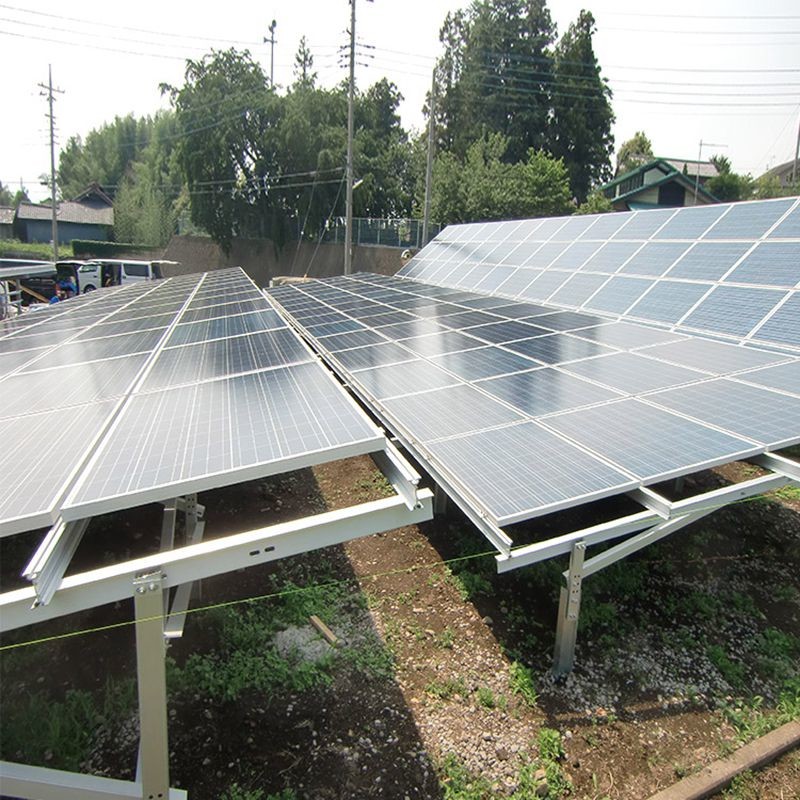

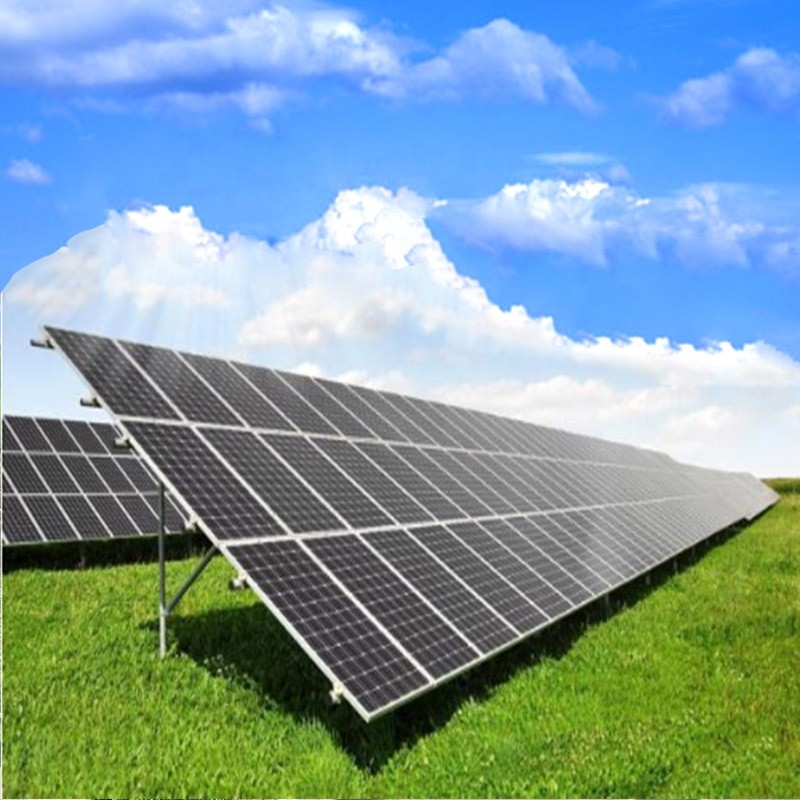

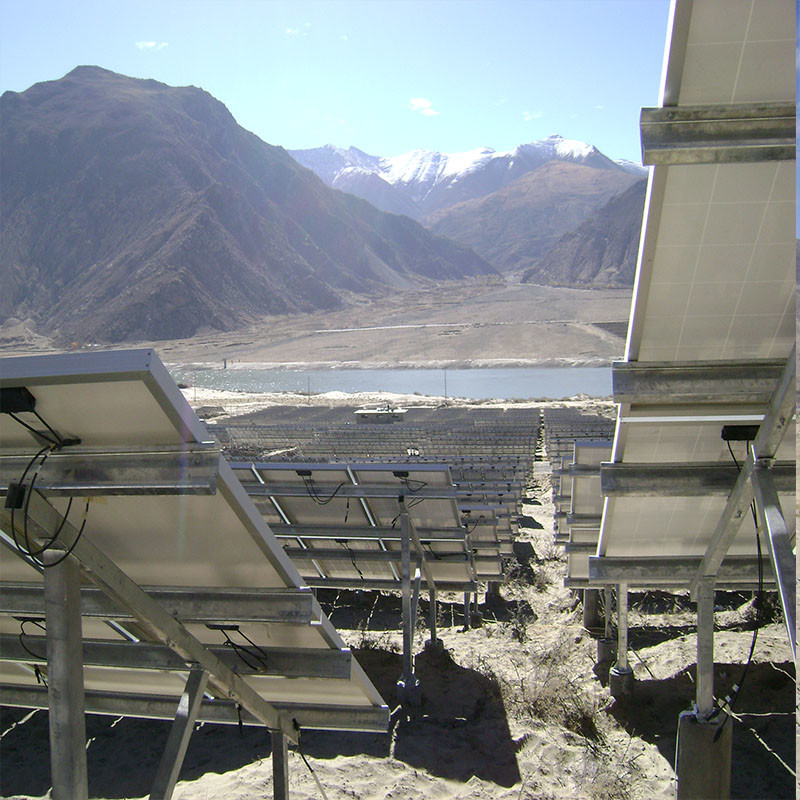

3. Project Display:

Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System

4. Company Introduction:

Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System

5. Main product:

Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System

6. Certificates:

7. Packing:

8. Cooperation Partners:

Chinese Aluminum Solar Panels Triangle Bracket Ground Pv Mounting System

9. Necessary information:

For the solution and quotation, we need some details as the following

No.	Item	Remarks
1	Location, Country of the Projects
2	What's Total Capacity of solar Project ?
3	Max Wind Speed m/s
4	Snow Load (KN/㎡)
5	which type landform the ground is ?
	A. Offshore Sea and island, coast, lake shore and desert area	YES / NO
	B. Fields, villages, jungles, hills and sparse houses and suburbs	YES / NO
	C. Urban areas with dense clusters of buildings	YES / NO
	D. Urban areas with dense buildings and high houses	YES / NO
6	Foundation Forms
	A. PHC Pile (pretensioned spun high-strength concrete pile)	YES / NO
	B. Ramming Pile;	YES / NO
	C. Concrete;	YES / NO
	D. Bored Pile;	YES / NO
	E. Others
7	Layout of Solar Panels
8	how many modules per array
9	Size of solar panels
10	Installation angle of solar panels
11	Panel Weight
12	Watts per Solar Panel
13	Requirements on Main Materials of Structure
14	Requirement on the lowest height between solar panels and ground	mm
15	How many arrays / units
16	other information
